Imagination Control Chiller

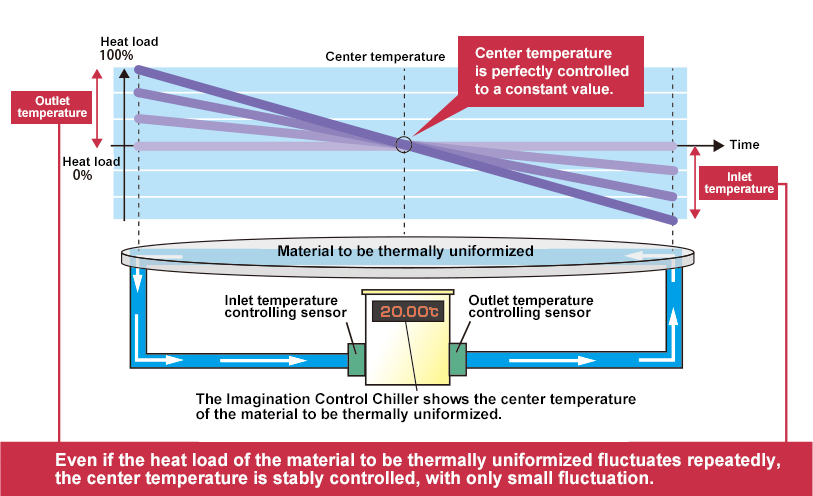

Change of the temperature of the controlled objects when the Imagination Control Chillers are used

Center temperature of the material to be thermally uniformized is predicted from the inlet and outlet temperature of the chiller, and the outlet temperature of the chiller is controlled so that the
The temperature shown on the chiller is predicted value, there is little difference from the actual temperature.
Naturally, the heat generated by the material to be thermally uniformized is not constant, but the fluctuation is regulated to the minimum by our proprietary super-high speed control. And consequently the center temperature is perfectly controlled to a constant value.

▼Check Spec▼
Type of the product AXI-700 AXI-1500 AXI-4500 AXI-7000 AXI-12000
Range of the controlled temperature 10℃~80℃
Capacity of cooling/heating 700W 1,500W 4,500W 7,000W 12,000W
Width of the range of controlled temperature ±0.03℃
We can manufacture products other than listed above, such as water-cooling and separate type, etc. Please contact us.
  • For customers who control the temperature of molds

    We believe that the fault rate will be reduced by revolutionary ratio by greatly stabilizing the center temperature of the mold.Your consideration of introducing the Imagination Control Chiller would be greatly appreciated.

  • For customers who use the temperature control system for the table of electron microscope

    If you use our Imagination Control Chiller, the chronological change of the temperature can be limited to the minimum.Please consider trying our product.

  • For companies developing and manufacturing semiconductor equipment

    Drastic reduction of the waggle width of plate temperature is possible. Please utilize our product for developing new high-quality products.

  • For companies developing and manufacturing laser equipment

    Even if the output is varied, it automatically controls the system so that temperature of the light source can be kept constant. Please do utilize it for developing new high-quality products.

Change of the temperature of the material to thermally uniformize when a conventional outlet temperature controlling chiller

Change of the temperature of the material to thermally uniformize when a conventional outlet temperature controlling chiller

Because it can make only the temperature of the inlet constant, the center temperature of the object is entirely different in fact, because of the generated heat. (The users of the apparatus, did you know that?) Naturally, heat generation of the object to thermally uniformize is not constant in many cases. Therefore the actual inlet temperature cannot made constant as shown in the below chart.
