Jacket Tank & Chiller
One stop service!
▼Check Spec▼

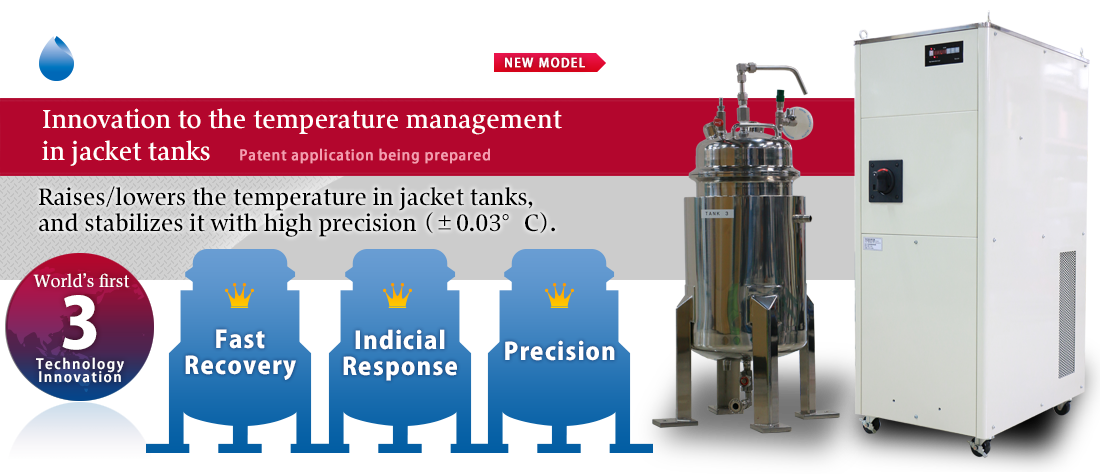

Chiller for Jacket Tank’s Temperature Control

Product type JA-700 JA-1500 JA-4500 JA-7000 JA-12000 Chiller for Jacket Tank’s Temperature Control
Temperature control range 10℃~80℃
Cooling/heating capacity 700/530W 1,500W 4,500W 7,000W 12,000W
Oscillation of the controlled temperature ±0.03℃
Price (excluding tax) ¥1,300,000 ¥1,540,000 ¥1,960,000 ¥2,400,000 ¥2,800,000
* Products not listed above such as water-cooling type and separate type are also available. Please contact us for more information
* Specification to the temperature fluctuation range from -30 to 120°C is also possible. Please contact us for more information.

Jacket Tank

Tank capacity 5L 10L 20L 30L 39L 40L 50L 100L Jacket Tank
Material SUS304
Working pressure 0.49MPa以下 0.2MPa以下
Method of fastening/releasing the cap Ferrule clamp
Sealing method O-ring sealing
* For other information including the shapes of tanks, please contact us.
* Large tanks with the capacity 100 L or larger are also available.
* For other information including the shapes of tanks, please contact us.

Selecting table for chillers and jacket tanks

Tank capacity Chiller type Time needed to raise the temperature (H) Time needed to lower the temperature (H)
5L JA-700 35℃ 42℃
10L JA-700 22℃ 26℃
JA-1500 60℃ 60℃
20L JA-1500 38℃ 38℃
30L JA-4500 74℃ 74℃
39L JA-4500 60℃ 60℃
40L JA-4500 59℃ 59℃
50L JA-4500 49℃ 49℃
JA-7000 67℃ 67℃
100L JA-7000 39℃ 39℃
JA-12000 62℃ 62℃
* All data are for the system with 50 mm insulator.
* For the time needed to raise/lower the temperature for the system without insulator, please contact us.
* Large tanks with the capacity 100 L or larger are also available.
